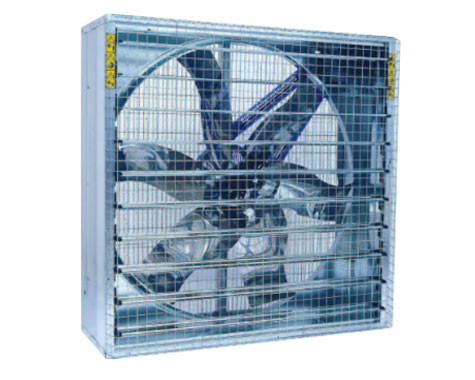

Euroemme® EM50n Exhaust Fan

The EM50n is a development of the well-recognized and proven EM50 and is the ideal exhaust fan whenever extra high airflow capacity is required.

The unique propeller design is self-cleaning and allows the highest efficiency to be reached, features which characterize the high quality and excellent performance E-line product segment.

• The square fan housing and air conveyor (venturi) are made of a strong galvanised sheet-steel
• The 6-blade propeller is statically and dynamically balanced for low noise and low vibration
• The propeller is available in stainless steel, galvanised steel and precoated galvanised steel
• The v-belt pulley attached to the propeller is made of die-cast aluminium, with reinforced ribs which will increase strength

To improve aerodynamic efficiency, the fan has been developed in Munters R&D lab. The test chamber has been built according to ANSI/AMCA 210-85 Figure 15 specifications. Construction details and air tightness have been verified by personnel of the BESS Lab at the Agricultural Engineering Department, University of Illinois – USA. All declared values in this leaflet are measured and certified by BESS Lab (test #02333 and #02332)

• Fan housing and venturi made of the corrosion resistant material Munters Protect
• Central hub and v-belt pulley are made from die-cast aluminium, with reinforced ribs for prolonged lifetime.
• Each motor is individually tested for 100% quality control
• Family member of the time proven Euroemme® fan range
• Patented centrifugal system permits an energy efficient solution
• Shutter bearings are maintenance free

Suits

• Broiler farms
• Breeder farms
• Layer farms
• Barns
• Turkey farms
• Free-range/Organic
• Greenhouses/Glasshouses

Technical Information

1.0 HP Model

• Propeller diameter: 1,270 mm
• Motor: 1 hp
• Airflow 0Pa: 36,180 m3/h
• Airflow 25Pa: 31,594 m3/h
• Specific performance at 0Pa: 34.5 m3/wh

1.5 HP Model

• Propeller diameter: 1,270 mm
• Motor: 1.5 hp
• Airflow 0Pa: 42,125 m3/h
• Airflow 25Pa: 38,048 m3/h
• Specific performance at 0Pa: 28.0 m3/wh
