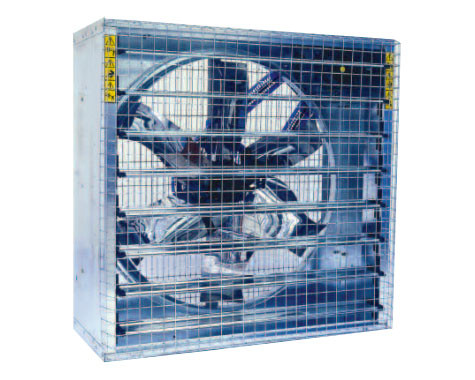

Euroemme® EM36 Exhaust Fan

EM30 is the ideal exhaust fan whenever high airflow capacity is required.

• The unique propeller design is self-cleaning and allows the highest efficiency to be reached
• The square fan housing and air conveyor (venturi) are made of a strong galvanised sheet-steel
• The 6-blade propeller is statically and dynamic balanced for low noise and low vibration
• Patented centrifugal system permits an energy efficient solution
• The propeller is available in stainless steel, galvanised steel and pre-coated and galvanised steel
• Shutter bearings are maintenance free

To improve aerodynamic efficiency, the fan has been developed in Munters R&D lab. The test chamber has been built according to ANSI/AMCA 210-85 Figure 15 specifications. Construction details and airtightness have been verified by personnel of the BESS Lab at the Agricultural Engineering Department, University of Illinois – USA.

Suits

• Broiler farms
• Breeder farms
• Layer farms
• Barns
• Turkey farms
• Free-range/Organic
• Greenhouses/Glasshouses

Technical Information

0.75 HP Model

• Propeller diameter: 760 mm
• Motor: 0.75 hp
• Airflow 0Pa: 14,550 m3/h
• Airflow 25Pa: 13,050 m3/h
• Specific performance at 0Pa: 17.9 m3/wh

0.5 HP Model

• Propeller diameter: 760 mm
• Motor: 0.5 hp
• Airflow 0Pa: 13,500 m3/h
• Airflow 25Pa: 11,400 m3/h
• Specific performance at 0Pa: 20.2 m3/wh

Request a Quote

Contact the office to request a quote and model recommendation for your new shed, upgrade or expansion project. Call 07 3829 3242 during business hours (8.00am to 4pm Monday to Friday) and ask for Peter.
