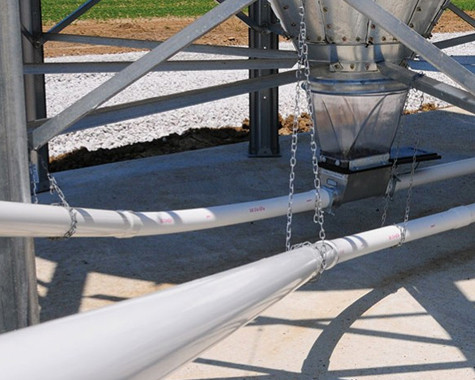

Brewery Flex-Flo Delivery System

A Flexible System for Moving Raw or Milled Products in Breweries.

Our Flex-Flo™ Feed Delivery System is ideal for use in breweries.

Using PVC tubing as the carrier of feed not only provides flexibility in facility design but reduces dust, provides protection against insect and rodent contamination and reduces stressful operation noise.

Flex-Flo systems are capable of spanning distances up to 75 metres*. For applications requiring greater distances, extension hoppers are available that can expand the delivery range and provide access 90 degrees from the main line.

*Limitations apply for specific Flex-Flo models. Contact us for more information.

System Components

• Heavy duty silo boots
• Custom made adapters to suit your requirements
• Single, double and triple one way, two way and three way unloaders to suit
• Auger, pipe and bends to suit  your conveying requirements
• Manually operated outlet drop with slide shut-off
• Drive unit assembly includes motor with outlet drop and automatic shut off switch

Flex-Flo PVC Tubing

Flex-Flo™ PVC tubing is extruded in-house under strict quality control to maintain exacting standards in the manufacturing process. Flex-Flo tubing is UV stabilized, provides excellent wear resistance and can accommodate a variety of feed system designs.

Flex-Flo Control Unit

Flex-Flo control units utilise proprietary sensing technology for dependable feed delivery.

The control unit can automatically adjusts sensing calibration to accommodate seasonal changes and wash-downs. Bi-color LED provides quick verification of operating status. The unit is constructed from non-corrosive materials for long life.

Auger and Pipe

Our augers are made from high tensile steel wire, flattened prior to hardening for a more consistent, higher quality product.

Flex-Flo models 300, HR, 350 and 500 undergo an exclusive manufacturing process for improved durability compared to a traditional auger.

Model 220

• 15 lbs. (6.8 kgs.) Per Minute Depending on Product Used * Contact us for advice
• 2.20" / 55mm

Model 300

• 50 lbs. (22.7 kgs.) Per Minute Depending on Product Used * Contact us for advice
• 2.95" / 75mm

Model 350

• 100 lbs. (45.4 kgs.) Per Minute Depending on Product Used * Contact us for advice
• 3.50" / 90mm

Model 500

• 220 lbs. (99.8 kgs.) Per Minute Depending on Product Used * Contact us for advice
• 5.00" / 125mm

Extension Hoppers
