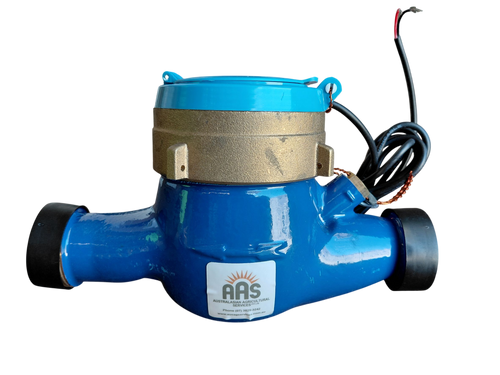

BAR water meter

BAR water meter

The Bar Meter was designed to measure potable water.
♦ Working principle: while water passes through the water meter, several water jets make the impeller rotate. The impeller’s rotations are proportional to quantity of water passing through and magnetically transmitted to the register, in
which the reading of the water meter takes place.
♦ Its solid and sturdy construction makes the Bar Meter suitable for various applications.
♦ The Bar Meter ensures high sensitivity and accurate registration throughout a wide flow range.

Characteristics and Advantages
• Hermetically vacuum-sealed register
• Magnetic transmission
• Magnetic shield, for external magnetic field protection
• High-flow accuracy and steady curve characteristics
• Solid and robust design
• High scratch resistant glass
• Internal strainer
• Minimum friction wears due to negligible impeller weight, bearing flushing and hard metals
• External calibration
• Rotating star for flow indication, electronic calibration on the test bench and leak detection
• Internal Check valve - Optional

Available size: 15, 20, 25, 32, 40, and 50 mm.
