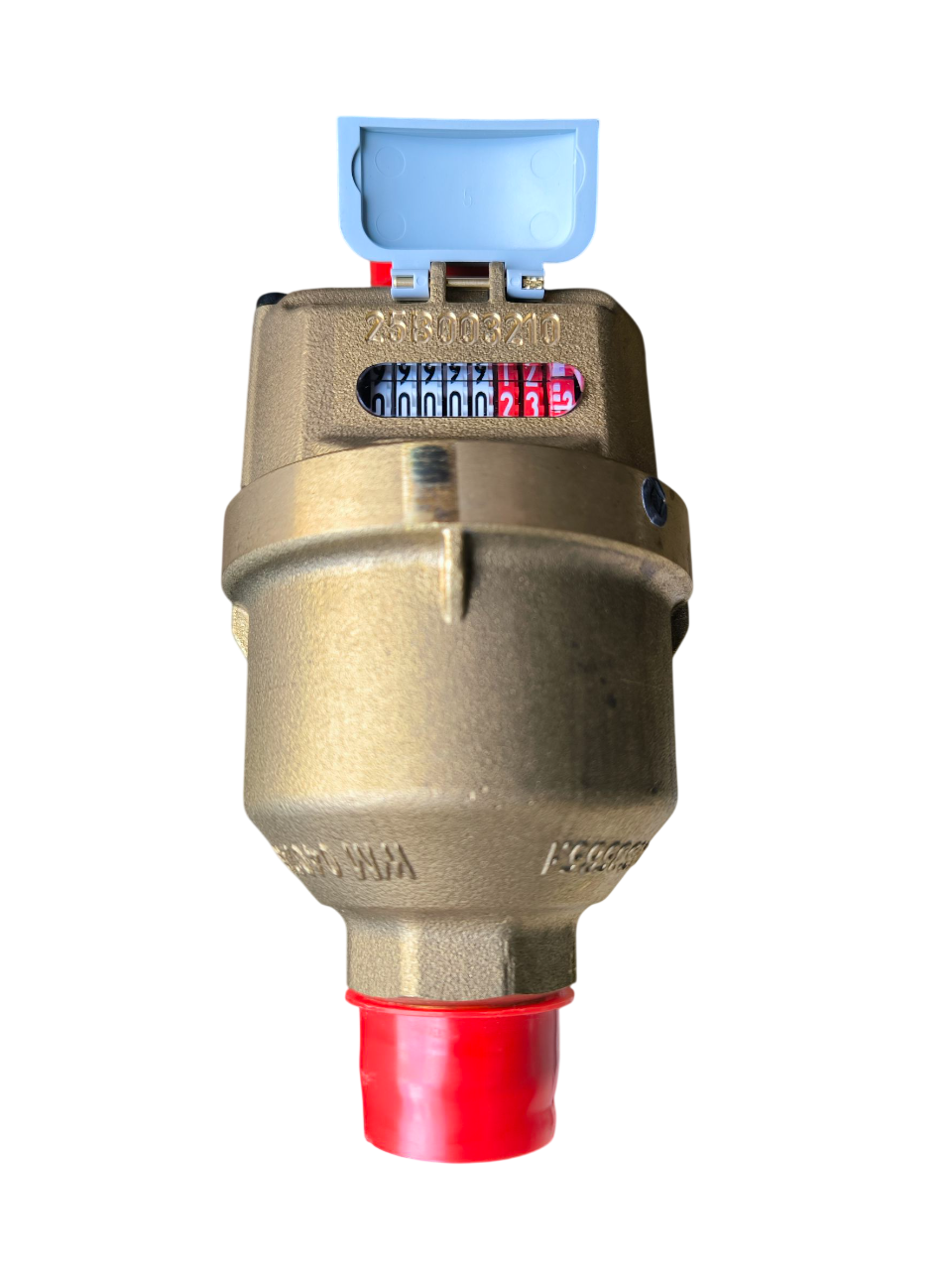

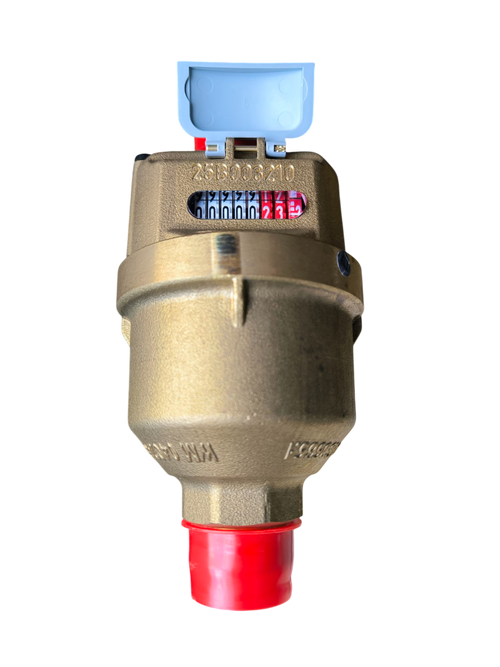

Water meter 20 mm

Water meter 20 mm

meter is designed for the measurement of cold potable water and offers accuracy, long maintenance free life and is highly resistant to tampering. The range includes five different meter sizes to suit overload flow rates from 5 kL/h up to 20 kL/h. The V100 (PSM-T) is suitable for water temperatures up to 50C and a maximum working pressure of 1600 kPa. Standard counter registration is in kL and litres. Every V100 (PSM-T) water meter is individually tested for accuracy before despatch.

Design Features

• Positive displacement volumetric rotary piston principle of measurement ensures registration even at the very lowest rates of flow with maintained accuracy over the flow range.
• Can be installed in horizontal, vertical or inclined pipelines without affecting accuracy.
• Requires no calibration throughout its lifespan.
• "0" ring seal placed between the measuring chamber and the meter body ensures that internal leaks which could by-pass the measuring chamber are eliminated.
• Use of advanced engineered plastics for the measuring chamber minimises wear and maintains reliability under all operating conditions.
• A large surface area fine filter fitted on the measuring chamber inlet prevents damage by gathering solid particles. Due to its design, a partially obstructed filter will not affect the meter's accurate registration.
